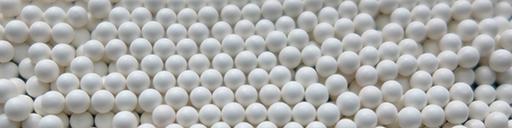

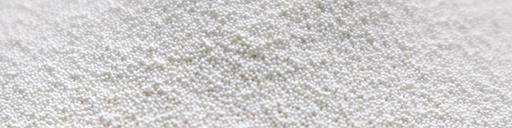

ZIRCONIUM SILICATE BEADS
Typical Chemical Analysis:
ZrO2 60 – 70%
SiO2 28 - 33%
Al2O3 < 10%
Crystal Structure:
Zirconia 68%
Vitreous phase 32%
Physical properties:
Specific gravity 3.85 g/cm3
Bulk density 2.30 g/cm3
Vicker hardness 700 HV1
Suntek Material offers two types of Zirconium Silicate Ceramic beads, quality in accordance with AMS 2431/7, SAE J 1830 standards:
Zirconium Silicate Ceramic beads for blasting & shot peening
Product Data Sheet:
Suntek Zirconium Silicate Ceramic beads for blasting & shot peening
Zirconium Silicate Ceramic Beads for grinding
Product Data Sheet :
Suntek Zirconium Silicate Ceramic Beads for grinding
Suntek ceramic beads perform very efficiently in dry or wet pressure blasting systems and in multi-turbine blasting equipment. Suntek shot blasting and peening media ensure excellent working conditions thanks to their low dust emission, round shape, smooth surface and high strength. Chemically inert, the ceramic media do not contaminate the treated substrates.
